PTS-234WD
![description](images/png/PTS-234WD/DESCRIPTION.png)
Pragmatic High-performance Tile Array Speaker
Default model color: Black
The PTS-234WD consists of a unique wide dispersion radiating panel which offers a very well-defined wide dispersion with no hot spots. The PTS-234WD is a compact ceiling tile speaker designed to be on its own or be paired with a variety of music distribution systems used in industrial and commercial applications.
The PTS-234WD drop-tile ceiling speaker is
very easy to mount in the standard commercial
drop-tile ceilings.
Additional options include an external HideAway™ amplifier and a PADS™ or TPA receiver. So whether you are looking for a high-performance speaker in a hotel, restaurant, theme park, corporation, school, hospital or department store for a very controlled wide dispersion sound field, the exceptional sound quality from PTS-234WD will be suitable for all needs within the A/V market.
![features](images/png/PTS-234WD/application.png)

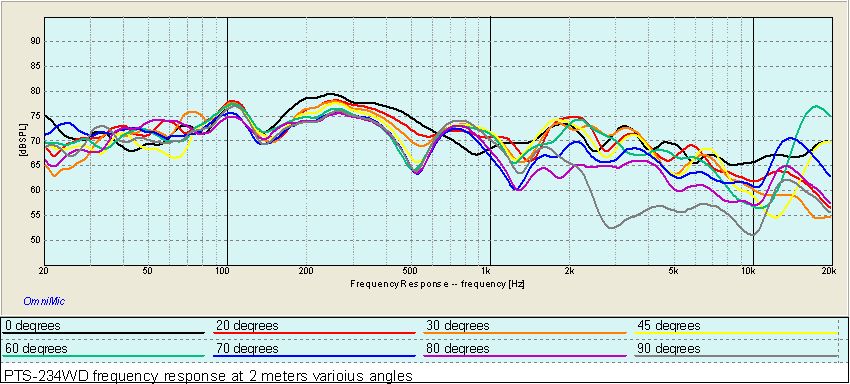

![resources](images/products-jpg/PTS-234WD frequency response 2m at angles.jpg)
Additional resources available for download are listed below

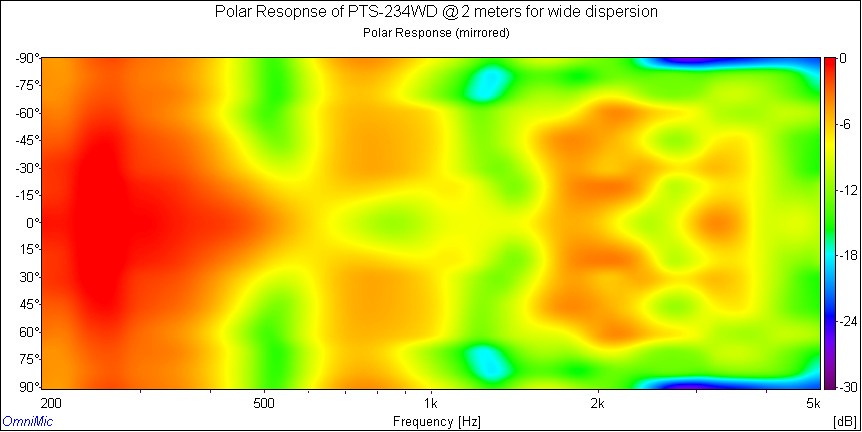

![Placeholder image](images/jpg/PTS-234WD Polar response at 2 meters wide dispersion.jpg)
-
      Applications in hotels, fitness clubs,
restaurants, theme parks, shopping malls,
grocery stores, etc.
-
      Patent pending wide-depersion panel
-
      Efficient energy consumption
-
      External HideAway™ amplifier option
-
      CE compliant
-
      Neutral color options for easy decor blending
-
      Standard drop-tile 2' x 2' (600mm x 600mm)
-
      Data Sheet
