MBA-124

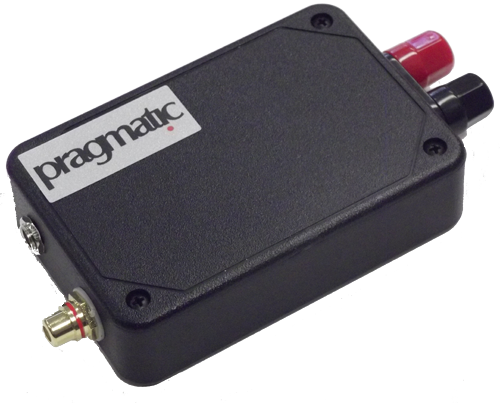

HideAway™ Series Mono-block Amplifier MBA-124
The MBA-124 contains a mono-block amplifier that provides extremely clean state-of-the-art power. The MBA-124 produces unexpected sound depth and musical clarity. The unit accepts any volume controlled line level stereo input and uses super quiet 12 V DC power. It has a continuous power of 24 Watts and a peak power of 60 Watts. Advanced protection circuitry guards against system damage from overload, overheating, or short circuits.
There are a number of optional features available for the MBA-124. Options include a rotary volume control and multiple amplifiers in a standard rack mount unit.
Pragmatic offers high-quality digital amplifiers that contain numerous advantages over the competition. A Pragmatic amplifier boasts high efficiency and clock frequency. It also has very linear gain and phase characteristics. The amplifier has a flat frequency response from 10 Hz to 50 kHz. There is no ripple in the passband and very low change in distortion versus out power levels (usually between 0.01 and 0.05%). It maintains very low and uniform distortion on all frequencies and very high signal-to-noise ratio and dynamic range.
-
      Compact mono block amplifier
-
      Residential or Commercial audio amplification
-
      Compact design
-
      High Efficiency
-
      High clock frequency
-
      24 Watts per channel
-
      Weighs only 9 oz.
-
      Very linear gain and phase characteristics
-
      Very high dynamic range
-
      Very high signal-to-noise ratio
-
      No ripple in the pass band
-
      Very low change in distortion versus output power levels
-
      Only 12 V DC power required
-
      Flat frequency response from 10 Hz to 50 kHz
-
      Data Sheet
-
      A Critic's Review of Pragmatic Class D Amplifiers
-
      Rotary volume control
-
      Multiple amplifiers in a standard rack mount unit
