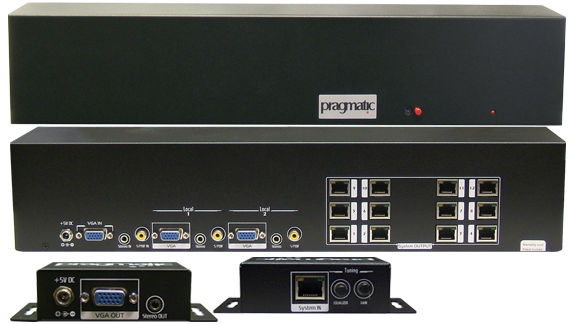

CATS-VGA-12B

family

VGA Over Extended CAT5
The high quality and high resolution Pragmatic VGA extenders deliver surprising clarity and untainted audio video distribution over extended distances up to 1000 ft on CAT5 cable.

The VGA & audio over CAT5 distribution series provides the most flexible solution by which high resolution PC video and high quality stereo audio can be transmitted to different locations over ultra long distances.

Built with two VGA and digital/analog audio loop-outs, local A/V receivers can provide extra video and audio fan-outs through typical VGA, S/PDIF, and analog audio cables. The high bandwidth VGA can be transmitted up to 65 meters (210 feet) on the local ports. VGA & audio over CAT5 distribution series also extends VGA stereo audio source up to 330 meters (1000 ft) through cost effective Cat-5/5e/6 LAN cables. The CATS-VGS-RX1 and CATSVGA- RX1D receivers are equipped with equalization, gain control and de-skew functions, assuring superior video and audio transmissions, the best most cost effective on the market.

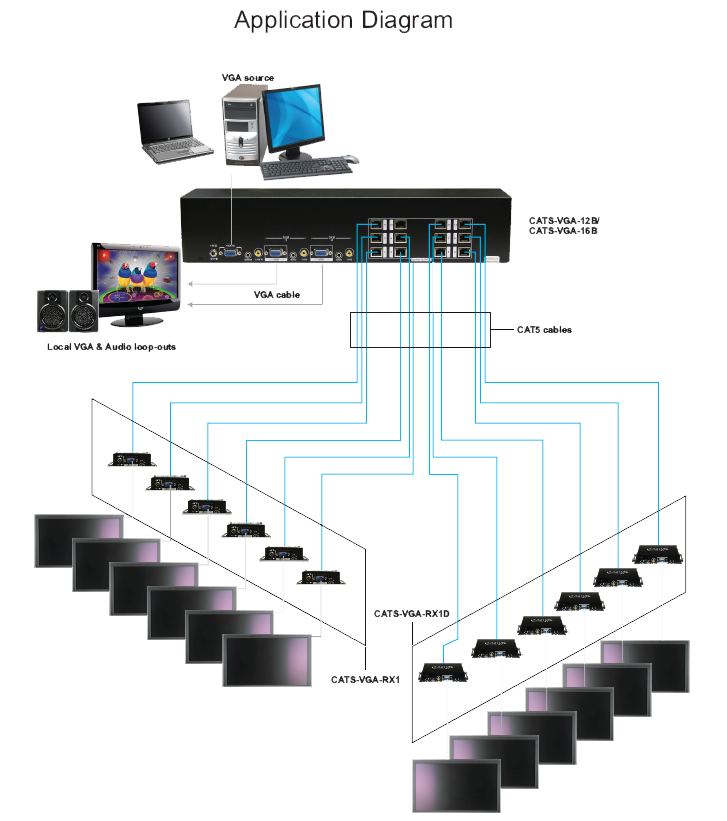

features application diagram
resources application diagram

Additional resources available for download are listed below

            Commercial buildings
            Digital signage
            Offices
            Healthcare
            Stadiums
            Distributes audio and video up to 1000 ft with out loss or degradation
            Supports resolution up to 1280 x 1024
            Supports analog stereo audio
            Supports S/PDIF
            Adjustable equalization and gain control on RX unit
            De-skew compensation available for RGB delay control (with CAT5-VGA-RX1D only)
