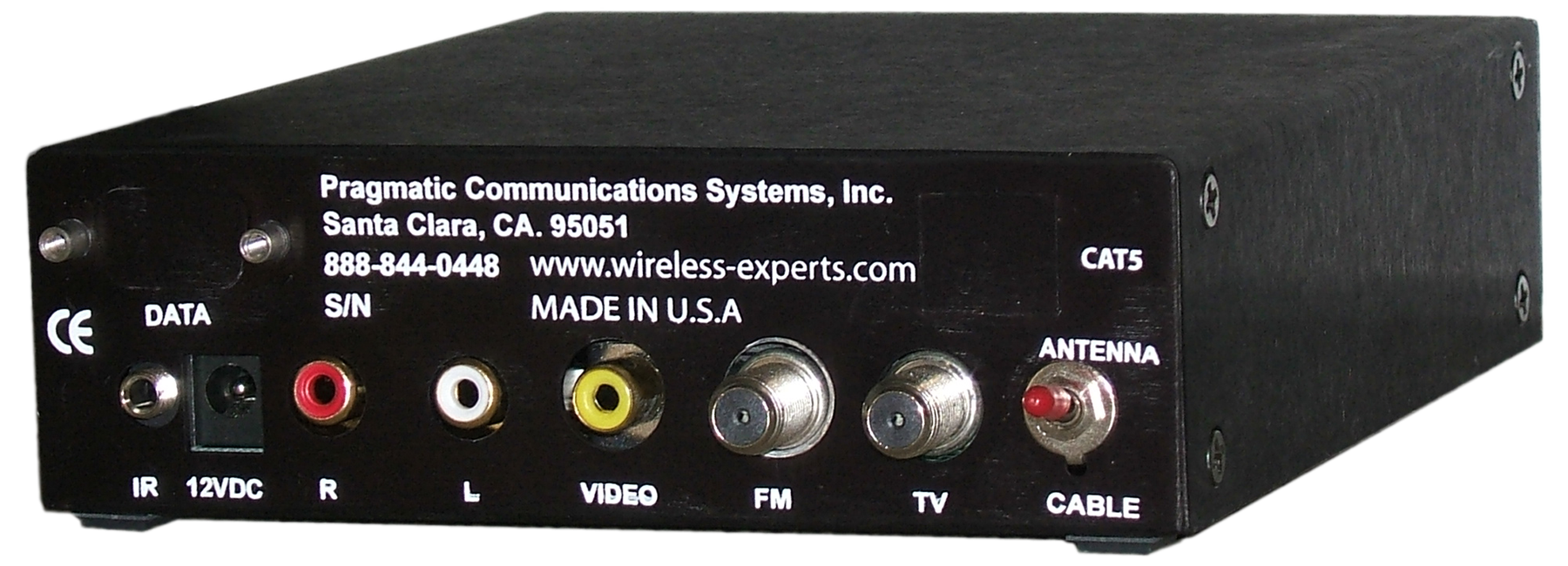

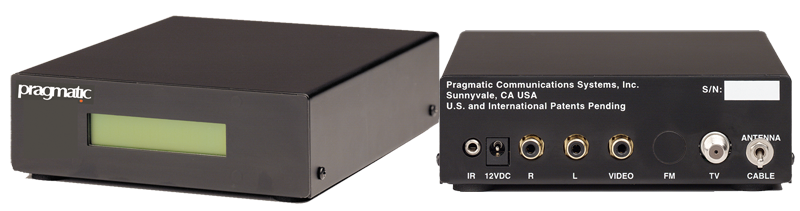

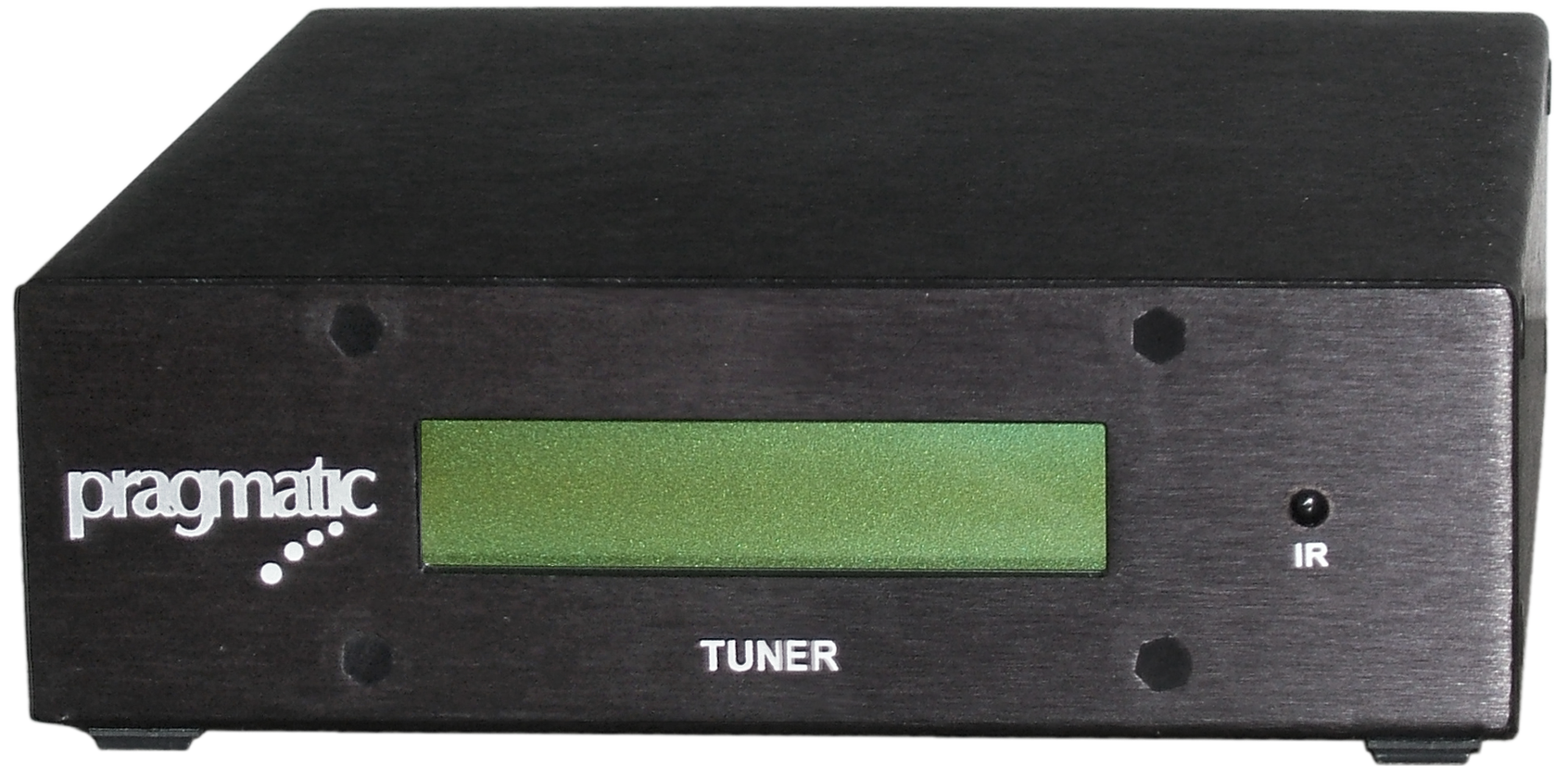

TUNR-1: Mini TV / CATV Tuner with optional FM

applications_1


Does your plasma TV, projector system, or studio monitors need a high quality tuner?
Pragmatic has the answer. The HideAway™ Mini TV / CATV Tuner is the ideal choice for plasma monitors and high-end projection systems that access cable television or a traditional antenna. It is also the perfect choice for the broadcast studio that employs many monitors. The signal can now be translated in close proximity to the monitor or projector, which eliminates noise and interference typically encountered when routing TV / CATV sources over a long distance. The unit outputs a composite video signal, is operated via IR remote control, and contains an elegant LCD display.

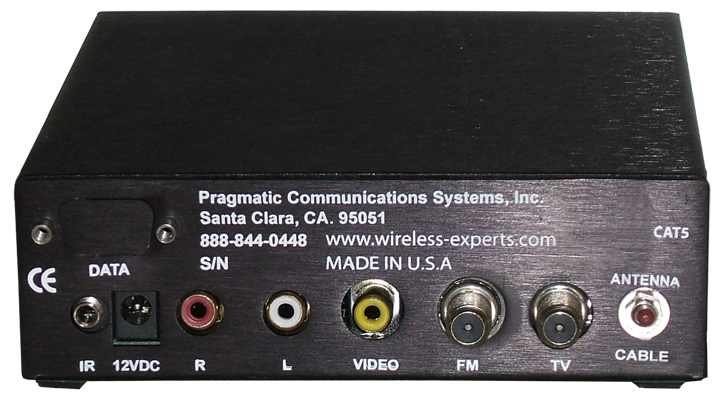

tunr1-f
FM included
            High-end projection systems that access cable television or a traditional antenna
            Plasma monitors
            Broadcast studios that employ multiple monitors
            Compact design
            Lightweight
            Efficient 12 V DC
            Antenna Sensitivity of 20 dBuV
            LCD display
            Measures 5.5” W x 1.75” H x 6.5” D
            Weighs 1.2 lbs
            Video bandwidth 4.2 MHz
            Video signal-to-noise 40 dB
            S-Video output
            MTS stereo decoder
            LED display
            Signal can be translated in close proximity to monitor or projector
