system FandB Receiver
CATS VGA Broadcast System
state
catsb

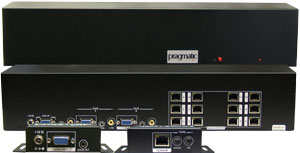

Available Models: CATS-VGA-12B, CATS-VGA-16B

The high quality and high resolution Pragmatic VGA extenders deliver surprising clarity and untainted audio video distribution over extended distances up to 1000 ft on CAT5 cable.

The VGA & audio over CAT5 distribution series provides the most flexible solution by which high resolution PC video and high quality stereo audio can be transmitted to different locations over ultra long distances.

Built with two VGA and digital/analog audio loop-outs, local A/V receivers can provide extra video and audio fan-outs through typical VGA, S/PDIF, and analog audio cables. The high bandwidth VGA can be transmitted up to 65 meters (210 feet) on the local ports. VGA & audio over CAT5 distribution series also extends VGA stereo audio source up to 330 meters (1000 ft) through cost effective Cat-5/5e/6 LAN cables. The CATS-VGS-RX1 and CATSVGA- RX1D receivers are equipped with equalization, gain control and d-skew functions, assuring superior video and audio transmissions, the best most cost effective on the market.

Components: CATS-VGA-12B, CATS-VGA-16B, CATS-VGA-RX1, CATS-VGA-RX1D
