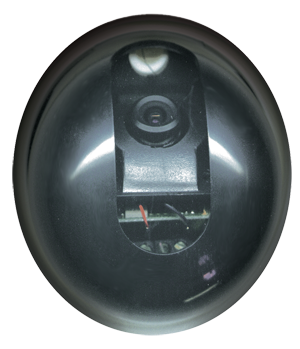

DomeCam™
In-Wall Security Camera System
The DomeCam™ is a high-resolution, black and
white camera that transmits video through
category 5 wires. With its built-in twisted pair
video transmitter, the camera captures clear,
detailed pictures. It is a great tool for surveillance,
private security, private investigation and many
other applications. DomeCam™ provides users
with an option of choosing between the integrated
lens and CS-Mount lens. The camera also
provides mirror mode options and backlight
compensation selectable on the board. This high
performance 1/3" CCD camera is available in 50
or 60 Hz models.
The unit shall measure 3.5" x 3.5". Its sensor type
shall be 1/3" CCD and have a sensitivity of less
than 0.1 lux. Its horizontal resolution shall be
greater than 380 TVL. It shall be powered by 12 V
DC. It shall operate in temperatures of –25 to 55
degrees Celsius. It shall also have the option of
mirror mode options and backlight compensation
selectable on the board. It shall be available in 50
or 60 Hz models. It shall have a built-in twisted
pair video transmitter.
Additional resources available for download are listed below
-
      Covert security camera
-
      Surveillance, private security, and private
investigation
-
      Multiple options including:
Integrated lens, CS-Mount lens, Mirror mode, Backlight compensation, 50 or 60 Hz models
-
      Data Sheet
